LINE FOLLOWER

Antes de empezar con el proyecto del Siguelíneas tenemos que instalar Arduino en nuestro ordenador (SO Ubuntu) y la placa Genunino 101 que es la que utilizaremos en el proyecto Seguir las siguientes instrucciones paso a paso:

1. Pinchar aquí

2. Descargar Linux 64 bits

3. Pinchar en Just Download

4. Abrir la descarga y hacer doble click en el archivo comprimido arduino-1.8.9-linux64.tar.xz

5. Abrir la carpeta descomprimida

6. Copiar la carpeta arduino-1.8.9 y pegarla en la carpeta Personal

7. Abrir el terminal y teclear cd arduino-1.8.9 y pulsar INTRO

8. Teclear ./install.sh y pulsar INTRO

9. En el Escritorio hacer doble click en el archivo Arduino Desktop

10. Click en Confiar y ejecutar

11. Abrir el IDE

12 Herramientas/Placa/Gestor de tarjetas

13. Escribir Intel Curie

14. Seleccionar Intel Curie Boards e instalar la última versión

15. Esperar hasta que termine de instalarse

16. En el terminal teclear cd .. y pulsar INTRO

17. Copiar y pegar en el terminal lo siguiente y pulsar INTRO:

chmod +x ~/.arduino15/packages/Intel/hardware/arc32/2.0.4/scripts/create_dfu_udev_rule

18. Copiar y pegar en el terminal lo siguiente y pulsar INTRO:

sudo ~/.arduino15/packages/Intel/hardware/arc32/2.0.4/scripts/create_dfu_udev_rule

Pedirá la contraseña. Poner usuario y dar a INTRO

19. Abrir el IDE

20. Ir a Programa/Incluir Librería/Administrar Bilbiotecas

21. Escribir Education

22. Instalar Education Shield

23. Cerrar el IDE y volver a abrirlo

24. Conectar la placa

25. Seleccionar placa Arduino Genuino 101

26. Abrir Ejemplo Basics/Blink

27 Cambiar LED BUILTIN  por 13 en las tres líneas de código y en delay cambiar 1000 por 300, 2000, etc

28. Subir el programa y comprobar

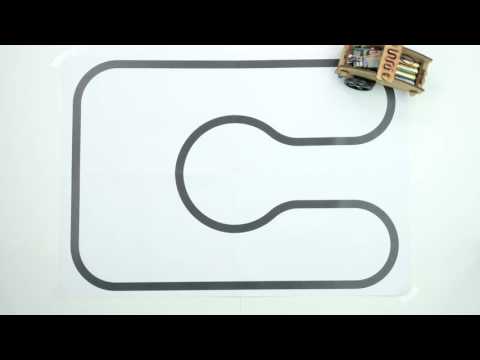

The Line Follower does exactly what the name suggests, it follows a line. Make it go where ever you want by showing the way with a 3 cm wide, black line.


Materials


  • 1 x control board
  • 1 x Education Shield
  • 1 x IR Array
  • 2 x continuous rotation servo
  • 12 x jumper wire
  • 1 x 9V battery
  • 4 x AA battery
  • 1 x AA battery holder
  • 2 x power plug (One without the plug that has two loose wires)
  • 1 x Line follower kit
  • 1 x metal ball
  • 2 x wheel
Other materials:
  • 1 x black tape
This experiment can be created without the Education shield. You can download the schematics here, and the Fritzing original files can be found in this Github repository.

Instructions



  • Step 1

    Gather all the construction materials for the Line follower.
  • Step 2

    Let's start building the Line follower! If you want some building tips, go to the Building Advices reference.
  • Step 3

  • Step 4

  • Step 5

    Make sure to screw the wheels to the continuous servos.
  • Step 6

  • Step 7

  • Step 8

  • Step 9

  • Step 10

  • Step 11

  • Step 12

  • Step 13

  • Step 14

  • Step 15

  • Step 16

  • Step 17

  • Step 18

  • Step 19

  • Step 20

  • Step 21

  • Step 22

  • Step 23

  • Step 24

  • Step 25

  • Step 26

  • Step 27

    Attach the shield onto the top of the board.
  • Step 28

    Connect 5 loose jumper wires to the IR Array, one to GND, another to VCC and three different colored ones to AN1, AN2 and AN3. These will later be connected to the board so remember what color is connected to what.
  • Step 29

  • Step 30

  • Step 31

  • Step 32

  • Step 33

  • Step 34

  • Step 35

  • Step 36

  • Step 37

  • Step 38

    Connect the loose wires from the IR Array to the board . VCC to power, GND to the breadboard, AN1 to A1, AN2 to A2 and AN3 to A3.
  • Step 39

    Connect GND to the same column in the breadboard as the GND from the IR Array.
  • Step 40

    Using 3 jumper wires, connect the right servo. The black wire to GND, the white wire to digital pin 6, and the red wire to the breadboard.
  • Step 41

    Using 3 jumper wires, connect the left servo. The black wire to GND, the white wire to digital pin 9, and the red wire to the breadboard.
  • Step 42

  • Step 43

    Check that your wiring is ready and connect the board to the computer.
  • Step 44

    Copy the code:
  • /*
    * LineFollower
    * The Line Follower does exactly what the name suggests,
    * it follows a line. Make it go where ever you want by
    * showing the way with a 3 cm wide, black line.
    *
    * (c) 2013-2016 Arduino LLC.
    */

    #include <EducationShield.h>

    //IRArray(IR1, IR2, IR3)
    IRArray ir = IRArray(A1, A2, A3);
    //Wheels(left, right)
    Wheels wheels=Wheels(6, 9);

    void setup(){
      wheels.begin();

      //Use this line to set the threshold of the IR sensors. The default is 380. If you're using Arduino 101 board, use 530 instead.
      //Use test() to check the values of each sensor in loop()
      ir.setThreshold(530);

      delay(1000);
    }

    void loop(){
      int dir = ir.readLine();
      wheels.follow(dir);
    }


  • Step 45

    Then upload the program to the board. Remove the USB cable, you will not run this project with it connected.
  • Step 46

    Prepare a 6 V battery with loose wires connector. Go to the Batteries reference if needed.
  • Step 47

    Using the power plug with loose wires, connect the battery pack to the shield breadboard, black wire to GND and the red wire to the two servos’ power wires.
  • Step 48

  • Step 49

  • Step 50

  • Step 51

  • Step 52

  • Step 53

  • Step 54

    Prepare a 9 V battery with a power plug and put it inside the robot. Go to the Batteries reference if needed.
  • Step 55

    Connect the 9 V battery to the board's power socket.
  • Step 56

    Now create some 3 cm wide, black lines, and lets follow it!

  • Code

    Find the code in File>Examples>EducationShield>Module4-Robots>Projects>LineFollower
    http://verkstad.cc/urler/ctc-g-b4-p-4

    How it works

    • The EducationShield library is included.
    • The IRArray and Wheel objects are declared, ir and wheel.
    • In setup() the wheels are initialized.
    • The threshold for the IRArray is set with ir.setThreshold(threshold). If you’re using the CTC 101 board the threshold is 530, if you’re using the CTC UNO board its 380.
    • The program pauses for 1000 milliseconds.
    • In loop(), the variable dir is declared to hold the value read from the IR array using readLine(). The value will be between -100 and 100 and represents the direction the black line is heading.
    • wheels is set to follow the value of dir.
    • loop() continues to loop.
    Note: Don't forget to change the threshold for the IRArray with ir.setThreshold(threshold) so that it fits with the board you’re using

    Troubleshooting


    • Refer to the illustration and double check your connections. Make sure the shield and jumper wires are firmly connected.
    • If the motors are not working, see the reference wheels about how to debug servo motors used as wheels.
    • Debug the IRArray, see the IR Array reference.

    Learn by doing


    • Print a track and build obstacles for the robot. If the obstacles are too difficult, see if there is a way to improve the robots performance by modifying the wheels.
    • Make the robot react in some way when it “sees” only white. That is, when it has lost the track of the black line.
